windows本地安装workman

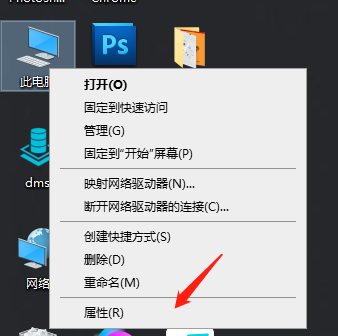

1 设置php环境变量(workman启动时需要用到php环境变量)

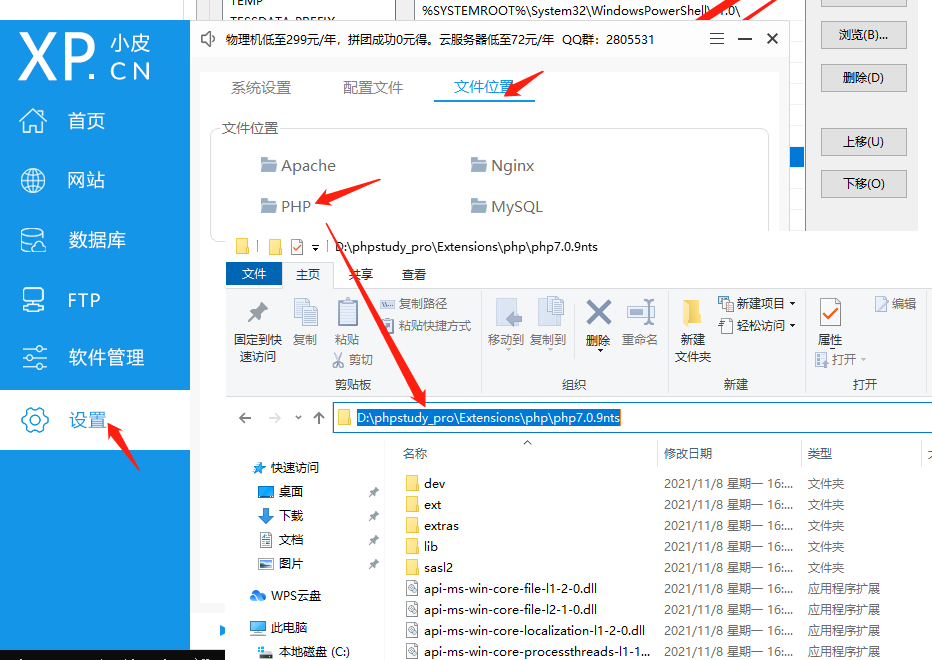

我是从phpstudy找到安装好的php

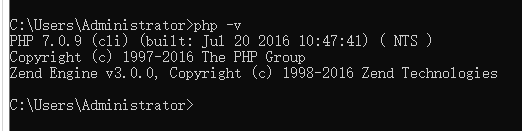

查看是否安装成功
php -v
2 下载 GatewayWorker (GatewayWorker是基于Workerman开发的一个可分布式部署的TCP长连接框架,专门用于快速开发TCP长连接应用,例如app推送服务端、即时IM服务端、物联网、智能家居等等)
手册地址:https://www.workerman.net/doc/gateway-worker/
下载一个deom: https://www.workerman.net/download/GatewayWorker.zip

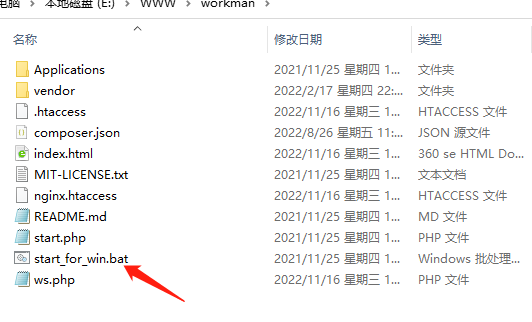

启动

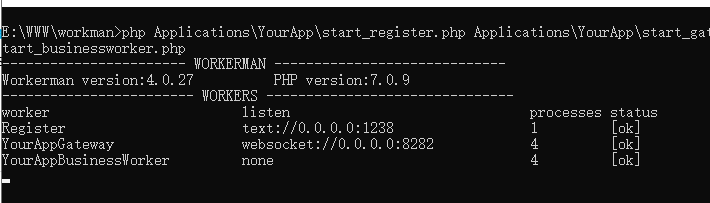

启动成功
连接workman
<html> <head> <meta charset="UTF-8"> <meta name="renderer" content="webkit|ie-comp|ie-stand"> <meta http-equiv="X-UA-Compatible" content="IE=Edge,chrome=1"> <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no"> <meta name="format-detection" content="telephone=no" /> </head> <body> <script type="text/javascript"> ws = new WebSocket("ws://127.0.0.1:8282"); ws.onopen = function() { console.log('连接成功'); //ws.send('tom'); }; ws.onmessage = function(e) { console.log("收到服务端的消息:" + e.data); }; </script> </body> <html>

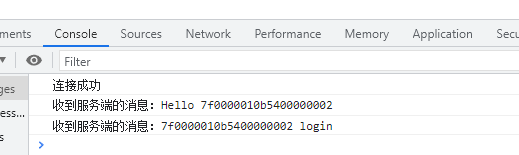

连接成功
3 安装 GatewayClient (网站与GatewayWorkerx结合)
安装方法 https://github.com/walkor/GatewayClient

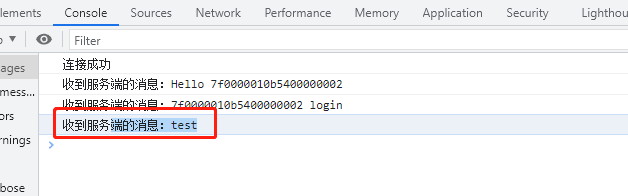

调用测试
<?php use GatewayClient\Gateway; require_once './vendor/autoload.php'; Gateway::$registerAddress = '127.0.0.1:1238'; Gateway::sendToAll('test');
// GatewayClient 3.0.0版本以后加了命名空间 use GatewayClient\Gateway; // composer安装 require_once '真实路径/vendor/autoload.php'; // 源文件引用 //require_once '真实路径/GatewayClient/Gateway.php'; /** * === 指定registerAddress表明与哪个GatewayWorker(集群)通讯。=== * GatewayWorker里用Register服务来区分集群,即一个GatewayWorker(集群)只有一个Register服务, * GatewayClient要与之通讯必须知道这个Register服务地址才能通讯,这个地址格式为 ip:端口 , * 其中ip为Register服务运行的ip(如果GatewayWorker是单机部署则ip就是运行GatewayWorker的服务器ip), * 端口是对应ip的服务器上start_register.php文件中监听的端口,也就是GatewayWorker启动时看到的Register的端口。 * GatewayClient要想推送数据给客户端,必须知道客户端位于哪个GatewayWorker(集群), * 然后去连这个GatewayWorker(集群)Register服务的 ip:端口,才能与对应GatewayWorker(集群)通讯。 * 这个 ip:端口 在GatewayClient一侧使用 Gateway::$registerAddress 来指定。 * * === 如果GatewayClient和GatewayWorker不在同一台服务器需要以下步骤 === * 1、需要设置start_gateway.php中的lanIp为实际的本机内网ip(如不在一个局域网也可以设置成外网ip),设置完后要重启GatewayWorker * 2、GatewayClient这里的Gateway::$registerAddress的地址填写实际运行Register的服务器ip和端口 * 3、需要开启GatewayWorker所在服务器的防火墙,让以下端口可以被GatewayClient所在服务器访问, * 端口包括Rgister服务的端口以及start_gateway.php中lanIp与startPort指定的几个端口 * * === 如果GatewayClient和GatewayWorker在同一台服务器 === * GatewayClient和Register服务都在一台服务器上,ip填写127.0.0.1及即可,无需其它设置。 **/ Gateway::$registerAddress = '127.0.0.1:1236'; // GatewayClient支持GatewayWorker中的所有接口(Gateway::closeCurrentClient Gateway::sendToCurrentClient除外) Gateway::sendToAll($data); Gateway::sendToClient($client_id, $data); Gateway::closeClient($client_id); Gateway::isOnline($client_id); Gateway::bindUid($client_id, $uid); Gateway::isUidOnline($uid); Gateway::getClientIdByUid($uid); Gateway::unbindUid($client_id, $uid); Gateway::sendToUid($uid, $dat); Gateway::joinGroup($client_id, $group); Gateway::sendToGroup($group, $data); Gateway::leaveGroup($client_id, $group); Gateway::getClientCountByGroup($group); Gateway::getClientSessionsByGroup($group); Gateway::getAllClientCount(); Gateway::getAllClientSessions(); Gateway::setSession($client_id, $session); Gateway::updateSession($client_id, $session); Gateway::getSession($client_id);
